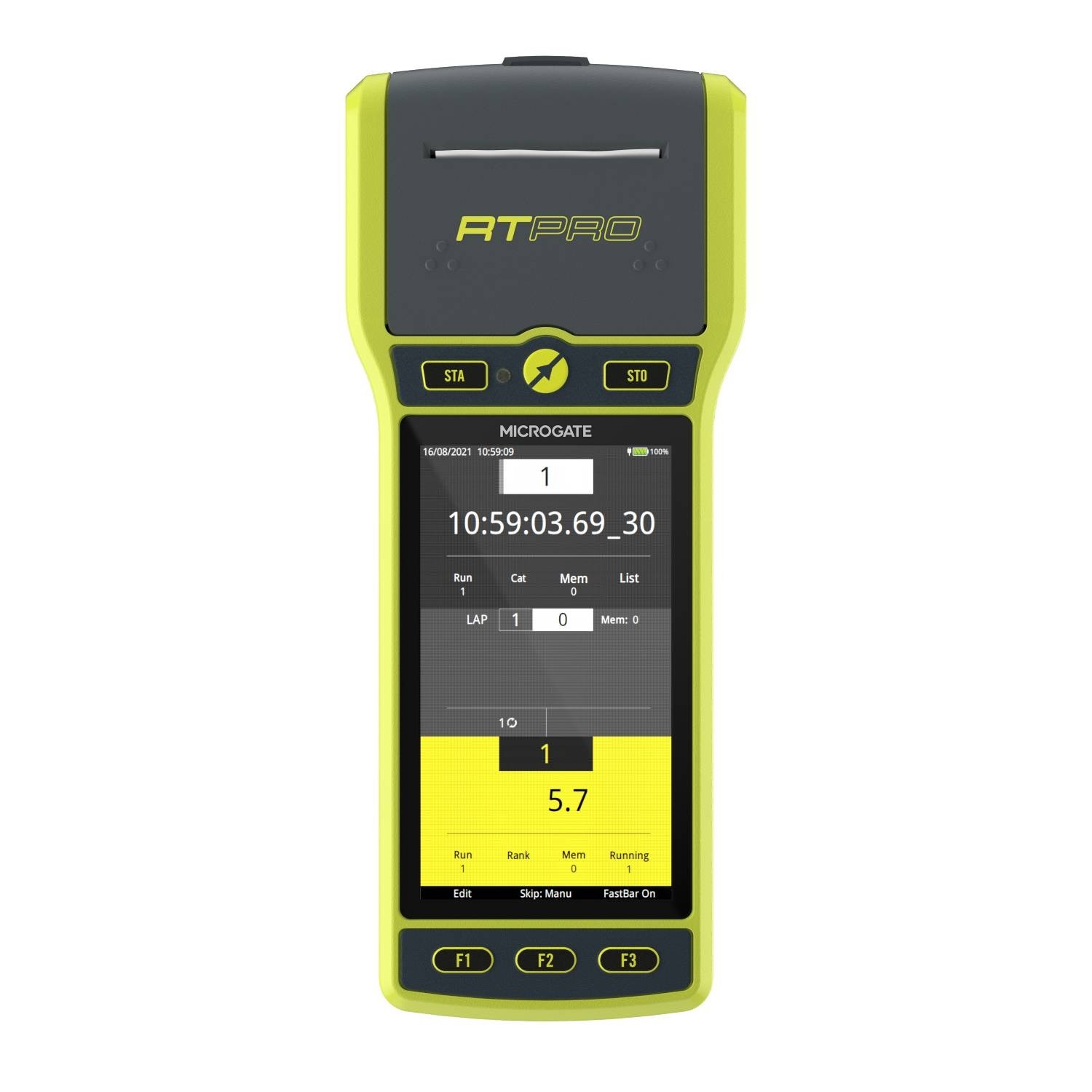

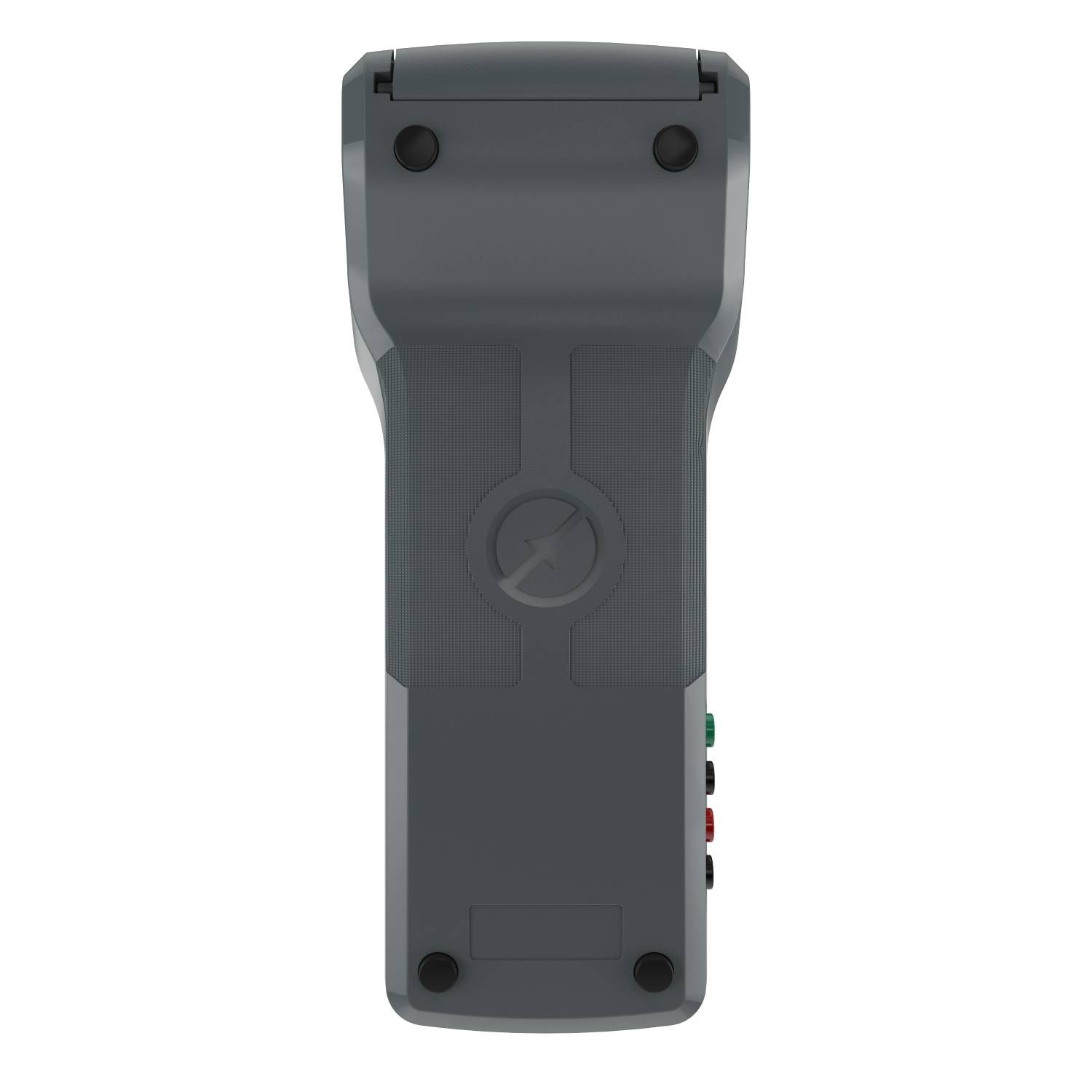

Microgate RT PRO Timing system

RT PRO Alpine skiing flyer pdf
Microgate PRO Timing pdf
VIDEO 1
VIDEO 2

Key Features:

• Weight: 750 g
• Dimensions (WxHxD): 109 x 262 x 66 mm (109mm ma/91mm min x 262mm x 66mm max/34mm min)
• Operating temperature: -20°C +60°C
• Unit of time measurement: selectable up to 1/10.000 sec.
• Time base: Temperature Compensated Crystal Oscillator ±1 ppm + integrated GPS sync
• Time accuracy: 1/50.000 sec.
• Memory capacity: 8 GB expandable up to 128 GB
• PERFORMANCE: CPU Quad Core Arm9 + dedicated FPGA to the Timing Unit.
• GNSS SYNCHRONIZATION: Receiving GPS, Galileo, GLONASS and BeiDou signals
• TIMING I/O: 4 timing lines, 16 by radio, 80 by Linkpod, 2 serial ports (using USB interface), 1 digital I/O.
• Battery life: up to 15 hours printing every 20 seconds
• SISTEM: Robustness and speed of the O.S. based on Linux for Embedded and Yocto Project.
• KEYBOARD: Keyboard with physical keys and flexible protective membrane cover.
• USB C connector with PowerDelivery.

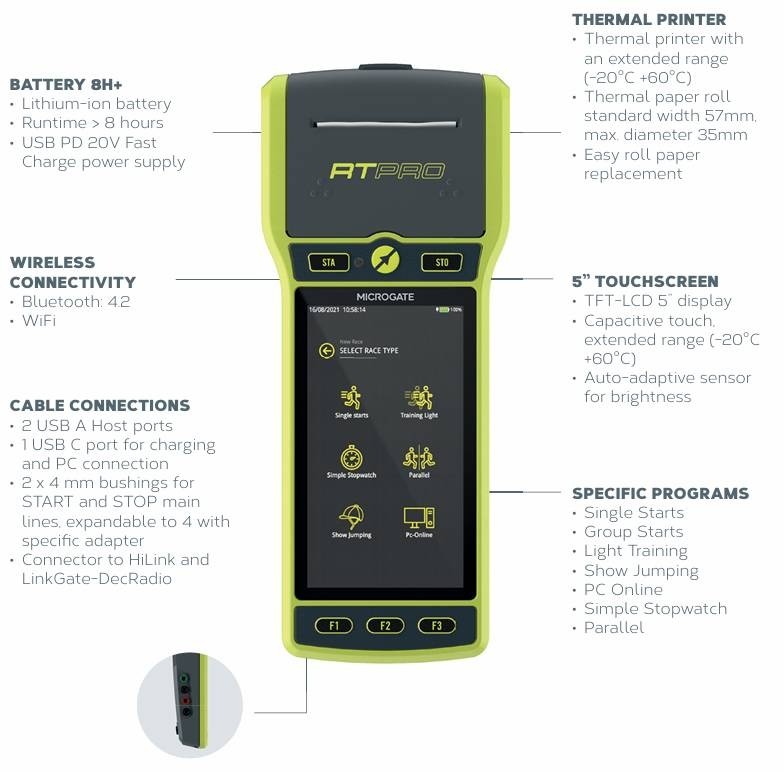

BATTERY H+:

• Lithium-ion battery 7.4V, 6.7Ah (48 Wh)
• Runtime > 8 hours
• USB PD 20V Fast Charge power supply

WIRELESS CONNECTIVITY:

• Bluetooth: 4.2
• WiFi

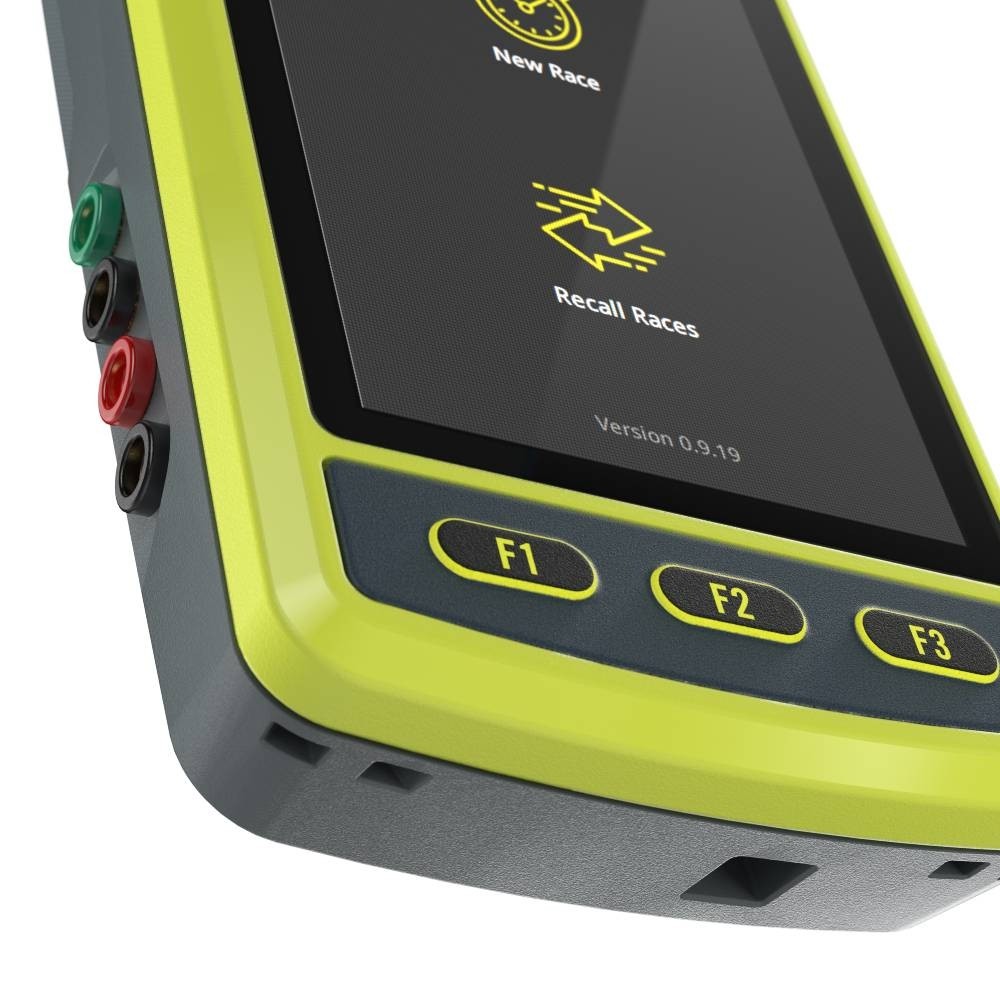

CABLE CONNECTIONS:

• 2 USB A Host ports
• 1 USB C port for charging and PC connection
• 2 x 4 mm bushings for START and STOP main lines, expandable to 4 with a specific adapter
• Connector to HiLink and LinkGate-DecRadio

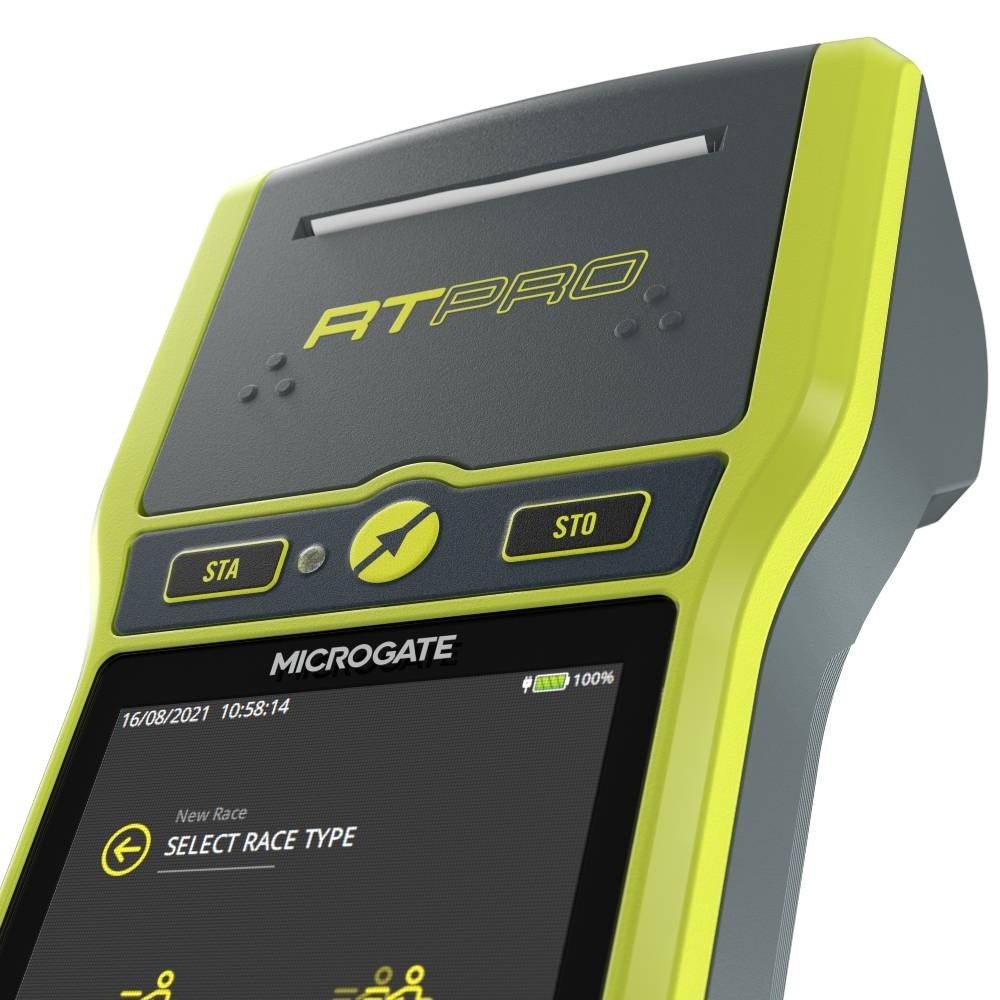

THERMAL PRINTER:

• Thermal printer with an extended range (-20°C +60°C)
• Thermal paper roll standard width 57mm, max. diameter 35mm
• Easy roll paper replacement
• No moving parts, up to 63 mm/s.

TOUCHSCREEN:

• TFT-LCD 5” display
• Capacitive touch, extended range (-20°C +60°C)
• Auto-adaptive sensor for brightness

SPECIFIC PROGRAMS:

• Single Starts
• Group Starts
• Light Training
• Show Jumping
• PC Online
• Simple Stopwatch
• Parallel

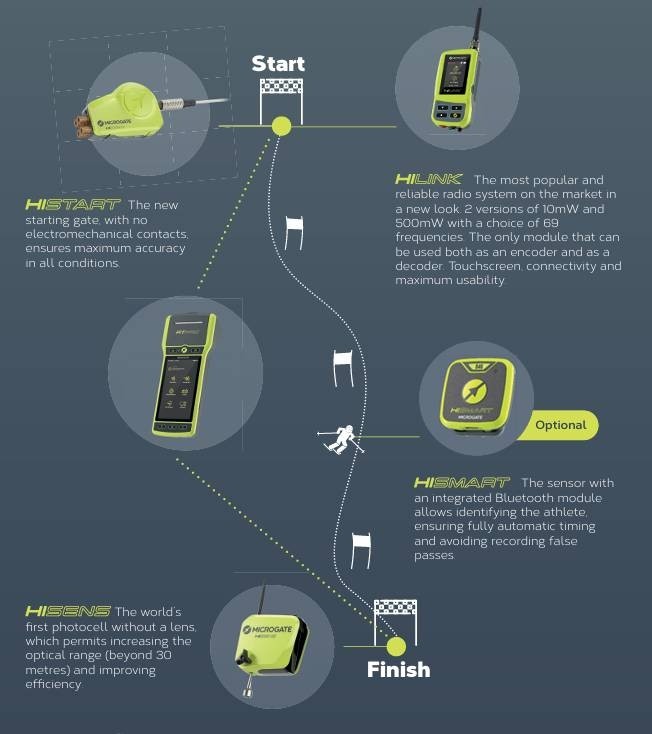

HISTART
starting gate, with no electromechanical contacts, ensures maximum accuracy in all conditions.

HILINK
The most popular and reliable radio system on the market in a new look. 2 versions of 10mW and 500mW with a choice of 69 frequencies. The only module that can be used both as an encoder and as a decoder. Touchscreen, connectivity, and maximum usability.

HISENS
The world’s first photocell without a lens, which permits increasing the
optical range (beyond 30 meters) and improving efficiency.

HISMART (sold separately)
The sensor with an integrated Bluetooth module allows for identifying the athlete, ensuring fully automatic timing, and avoiding recording false passes.

HITIMING APP
The fast and easy connectivity of the PRO Series system enables taking full advantage of the features of the new APP, which enables viewing and sharing test results and rankings in real-time.

RTPRO ERGONOMIC BACKPACK
The new RTPRO ergonomic backpack makes it easy to carry a timing system complete with start, finish, and 2 splits. The backpack can be divided into two to allow separate start and finish installation, thus cutting equipment assembly time in half.
